Products

1. Logistics in and out transportation
2. stage crew lift

Product Features











Model

R03-40400G

Specifications
Clamping Weight Capacity：3kg
Clamping Dimension：Ø40X400mm
Parts Station Capacity：500pcs
Max. Load of Parts Pallet：500kg
No. of Pallets：5片
Max. Moving Speed：30M/min
Controller：Mitsubishi
Floor Space：W12000 X D4000 X H4000mm

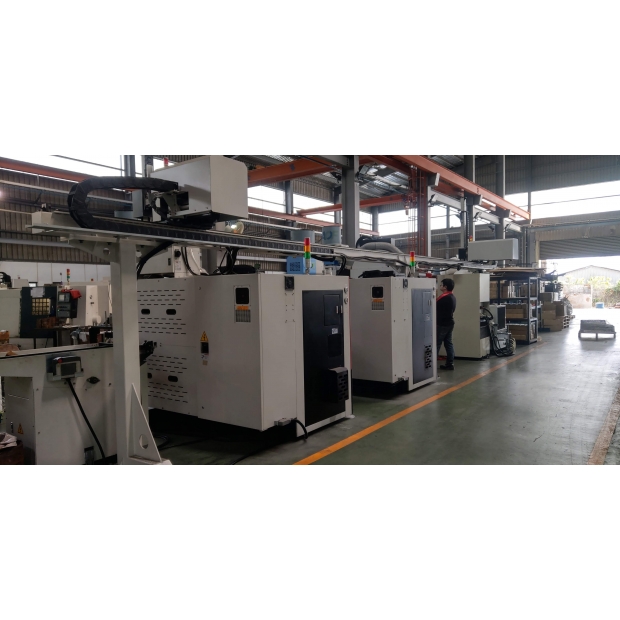

Equipment
Lathe OP01
Lathe OP02
Milling machine OP03
Radio Frequecy Heat Treat Machine
Short bar feeding station
Parts Flip Station
Buffer Station
Gangtry Loader

Features

1. Rapid Production Line Change

All equipment carries flexibility for adjustment to suit different sizes of bar and required finished parts.


 2. Multi-mode production

Full range machining, turning only, milling only, and heattreatment only modes are all available.



3. Intellegent Monitoring System

Cooperating with well-know information companies to provie real-time producton information such as alarm message, prodcution reports, and production scheduling.


4. Minimal Footprint required:

Working area occupies only 12 by 4 meters.


Product Features











Model

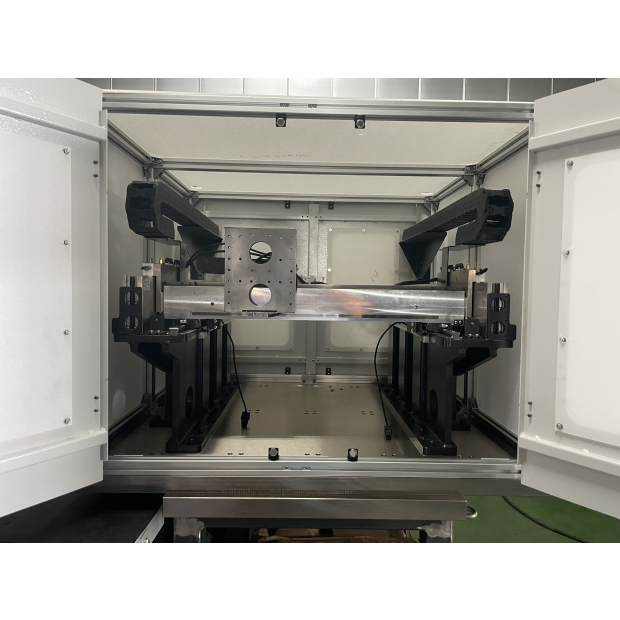

S03-506000

Specifications
X-axis travel：500mm
Y-axis travel：600mm
Internal spacing of columns：590mm
Internal height of beam：305mm
Drive mode：linear motor
Accuracy feedback method：Optical ruler

Heat dissipation method：X-axis-Fan  Y-axis-high pressure air



Line rail specifications：THK SSR series
Line rail lubrication method：grease
guest offerings：linear motor、Optical ruler、Microcontroller
XY Duplicate targeting：±0.02mm

Resolution：1um(Optical ruler feedback)

Plane walking accuracy：±0.05mm

Minimum air pressure requirement：0.6Mpa
Clamp action mode：Exhaust clamp














Features

1. Three-axis linear motor drive

2. Three-axis optical ruler




3. Linear motor air pressure cooling


4. Lightweight three-axis moving parts,High rigidity design
