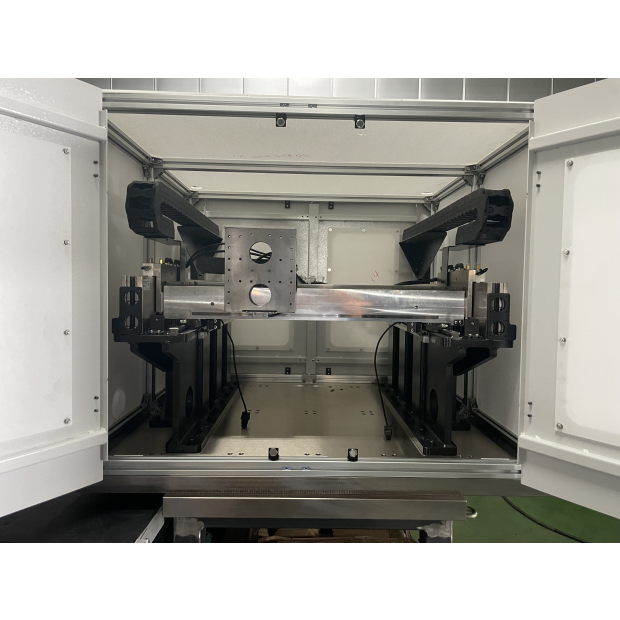

Model

S03-506000

Specifications
X-axis travel：500mm
Y-axis travel：600mm
Internal spacing of columns：590mm
Internal height of beam：305mm
Drive mode：linear motor
Accuracy feedback method：Optical ruler

Heat dissipation method：X-axis-Fan  Y-axis-high pressure air

Line rail specifications：THK SSR series
Line rail lubrication method：grease
guest offerings：linear motor、Optical ruler、Microcontroller
XY Duplicate targeting：±0.02mm

Resolution：1um(Optical ruler feedback)

Plane walking accuracy：±0.05mm

Minimum air pressure requirement：0.6Mpa
Clamp action mode：Exhaust clamp

Features

1. Three-axis linear motor drive

2. Three-axis optical ruler


3. Linear motor air pressure cooling


4. Lightweight three-axis moving parts,High rigidity design
