3-Axis Machining

3-Axis StandardType

3-Axis StandardType

affordable price.
The best choice for entry
DETAIL

Product Introduction








Models

B-1051400
B-1251400

Specifications

B-1051400 Spacing 150mm
B-1251400 Spacing 180mm

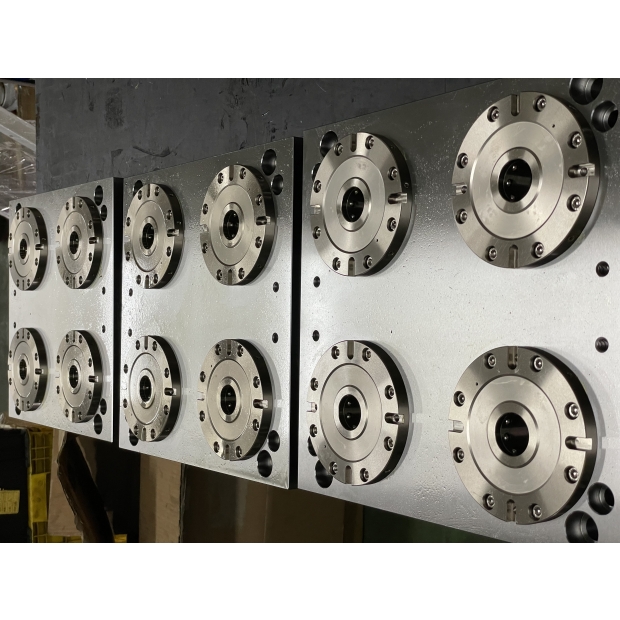

Zero Point System 4 sets
Repeatability:0.005mm
Clamping Force:10kN
T Slots Distance:100mm (Customized available)
Screw Spec:M12 (Suits 14-18mm T Slots)
Pipe ø:8mm

Functions

Zero Point Positioning
Rapid Clamping
Applicable in both Vertical/Horizontal Machining



Standard Accessories
Special Pull Studs X 4
M12 Screws X 4

One-touch Fittings ø8 X 1


Optional Accessories

Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover
On-site installation



Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
