3-Axis Machining

3-Axis StandardType

3-Axis StandardType

affordable price.
The best choice for entry
DETAIL

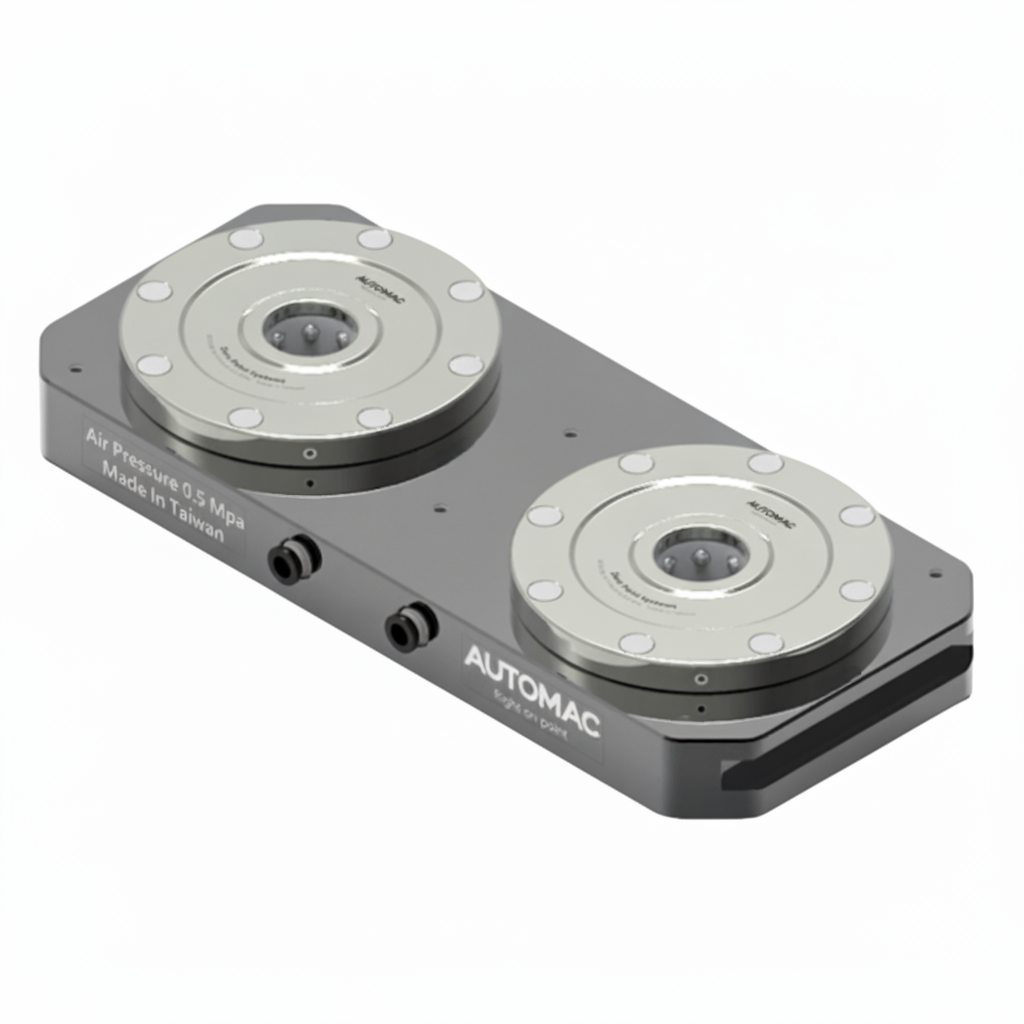

Product Introduction

原點定位,零點定位,夾持

原點定位,零點定位,夾持


Small-sized Work Pieces


Models

B-1051200
B-1251200

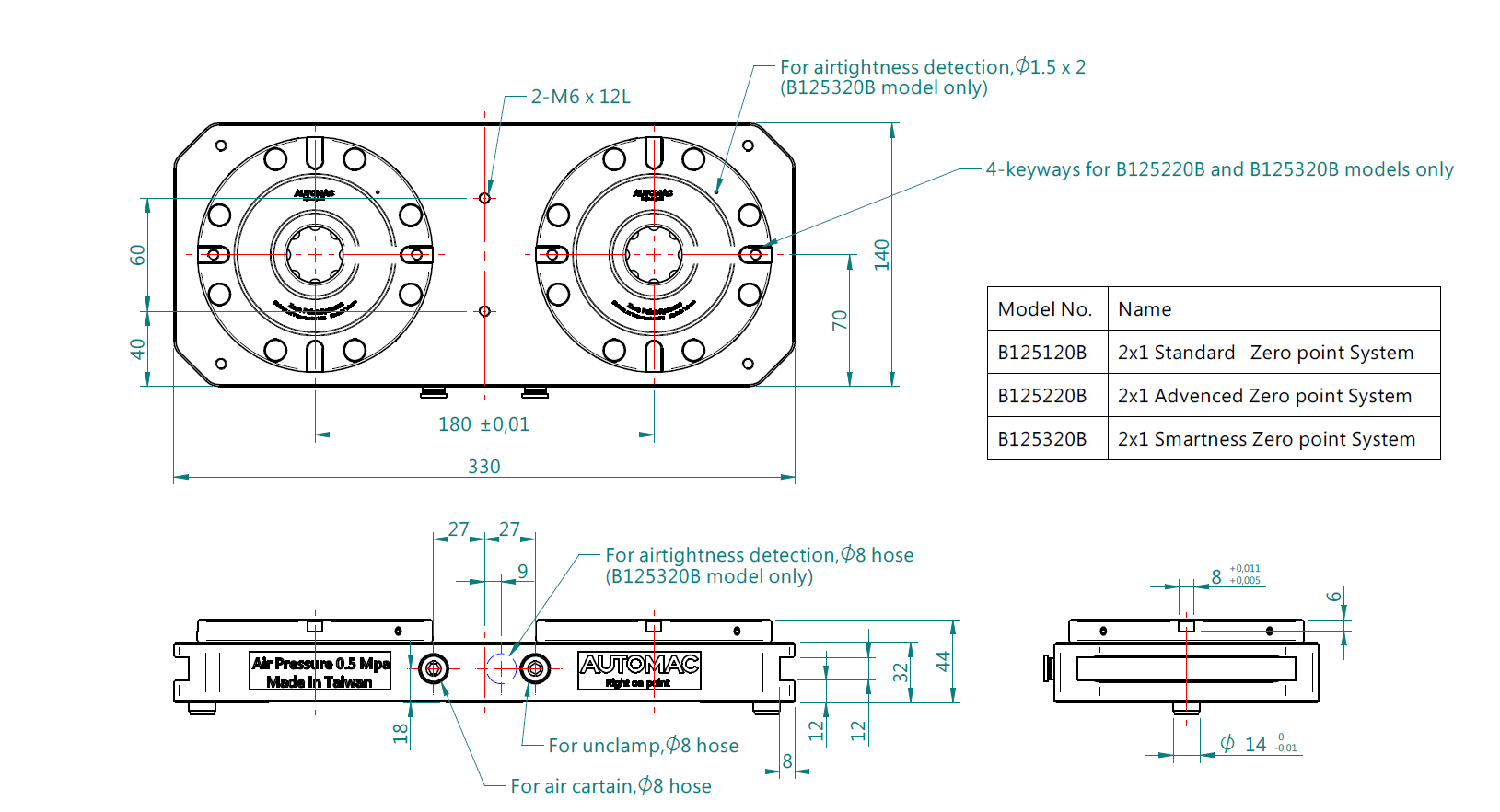

Specifications

B-1051200 Spacing 150mm
B-1251200 Spacing 180mm

Zero Point System 2 sets
Repeatability:0.005mm
Clamping Force:10kN
T Slots Distance:100mm (Customized available)
Screw Spec:M12 (Suits 14-18mm T Slots)
Pipe ø:8mm

Functions

Zero Point Positioning
Rapid Clamping
Applicable in both Vertical/Horizontal Machining


Standard Accessories

Special Pull Studs X 2
M12 Screws X 4

One-touch Fittings ø8 X 1


Optional Accessories
Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)

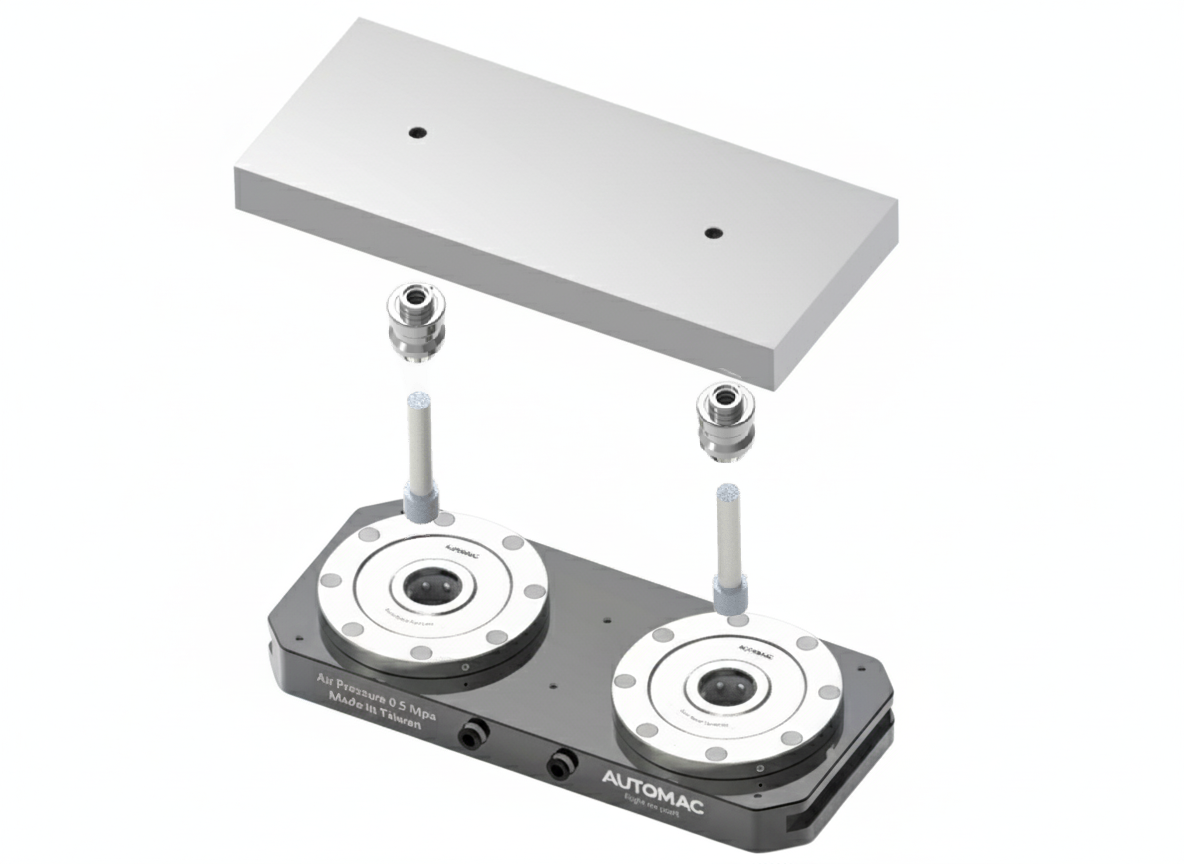

Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover

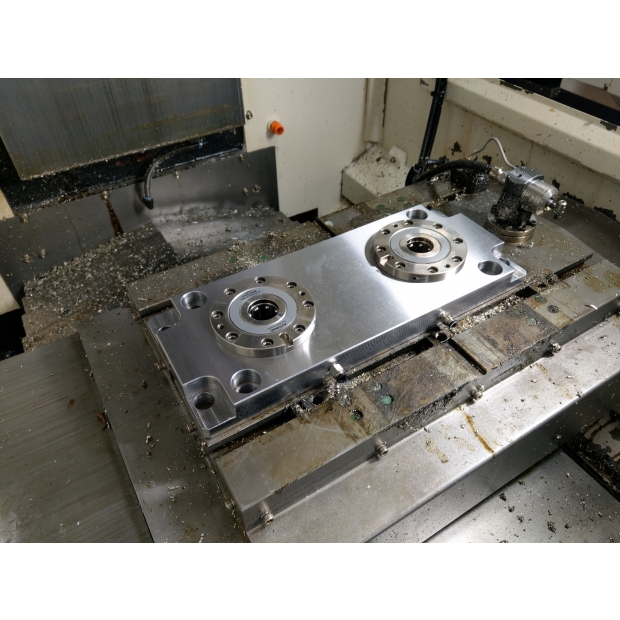

On-site installation



Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
