Models

B-1052400
B-1252400

Specifications

B-1052400 Spacing 150mm
B-1252400 Spacing 180mm

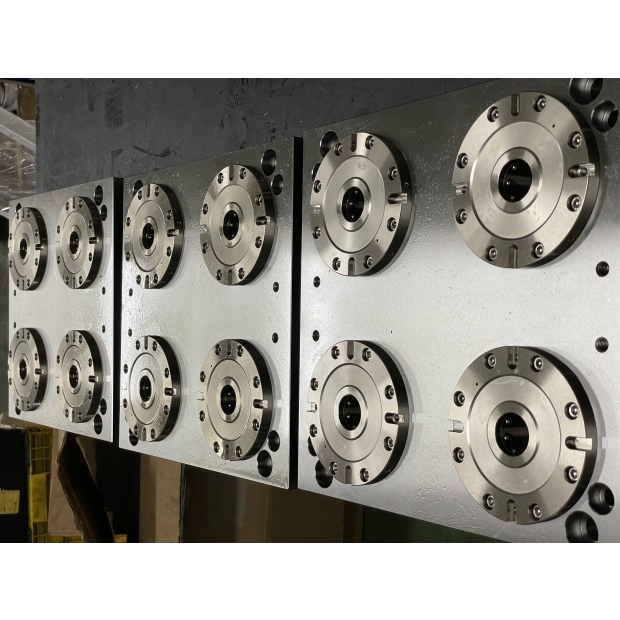

Zero Point System 4 sets
Repeatability：0.005mm
Clamping Force：10kN
T Slots Distance：100mm (Customized available)
Screw Spec：M12 (Suits 14-18mm T Slots)
Pipe ø：8mm

Functions

Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls for Chip Prevention
Applicable in both Vertical/Horizontal Machining


Standard Accessories
Special Pull Studs X 4
M12 Screws X 4
One-touch Fittings ø8 X 3

Optional Accessories

Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover
Precision Positioning Key
On-site installation


Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
