Product Introduction

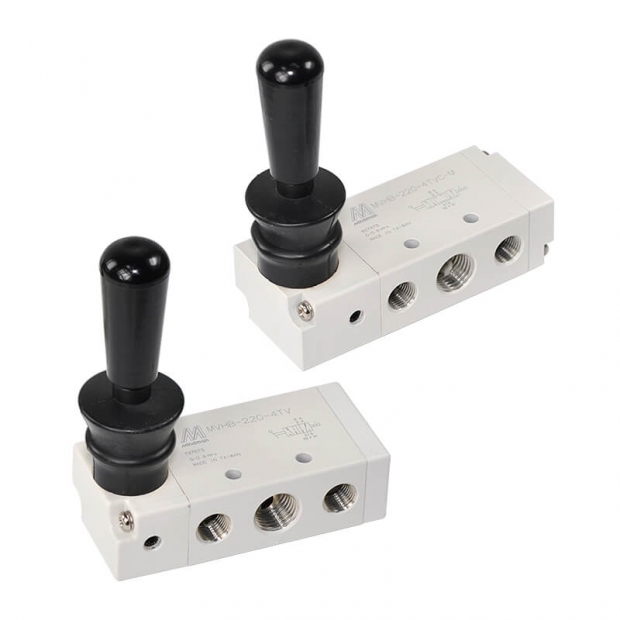

Model

MVHB-220

Specifications
Piping Diameter Code:8A
Piping Dia.:Rc1/4
Solenoid Valve:2-Position 5-way
Source:Pneumatic
Pressure Range:0~0.8 MPa
Valid Cross Section Area:16mm2

Working Temperature:-5~+60℃ (Non Freezing)
Weight:193g


Standard Accessories
One-touch Fitting
Silencer
Plate Connector

Pneumatic Pipe
