Model

P-1252800

Specifications
Center Spacing: 150mm
Zero Point System X 8 (2 sides totally 8 sets)
Repeatablity：0.005mm
Clamping Force：10kN
Screw Center Spacing：55mm X 2(Can be customized)
Screw：M12(Can be customized)
Pipe Dia.：4mm
Plate Size：L800 X W185 X D62mm

Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at 0゜~180゜

Standard Accessories
Speical Pullstuds X 8
M10 Screws X6
ø4 One-touch Fitting X 6

Optional accessories
Operation Valve Piping Kit
Standard-sized Aluminum Fixture Plate (L280 x W185 x D20mm)
Fool-proof Pin
Chip Prevention Cover

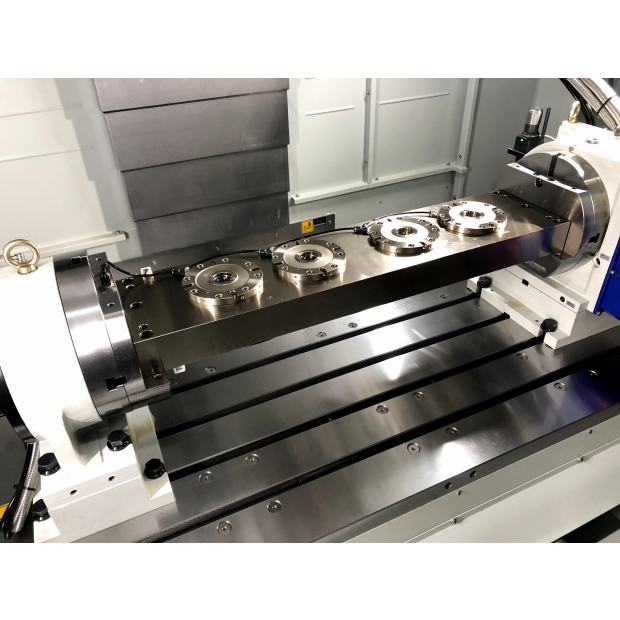

On-site installation

Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
