Model

R-1252100

Specifications

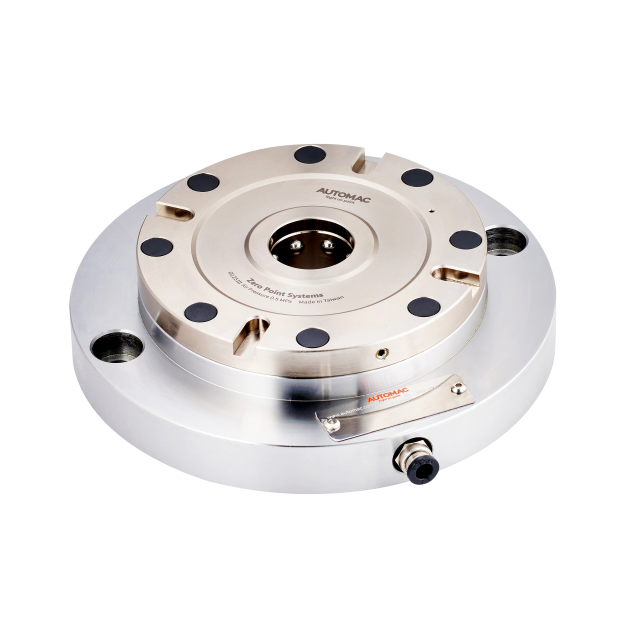

ø125 Standard Type (single unit with swing under 300mm)
Zero Point System X1
Repeatability： 0.005mm
Clamping Force：10kN
Screw Spec：M10 (May be used with T Slots betwee 12-18mm)
Pneumatic outlets：ø4.1mm X 3  (PCD customized)
Standard Size：ø175X44mm

Functions

Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle


Standard Accessories

Special Pull Stud X 1
M10 Screws X 2
ø4.1mm Pneumatic Fixtures Interface with rotary joint units.

Optional Accessories

Operation Valve Piping Kit
T-slot Nus (for 14-18mm T Slot)
Standard-sized Steel Fixture Plate (ø410X25mm)
Chip Prevention Cover
Precision Positioning Pin
On-site installation

Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
