4-Axis Advanced Type

4-Axis Advanced Type

Switching operation efficiently by using the same fixtures and plates.

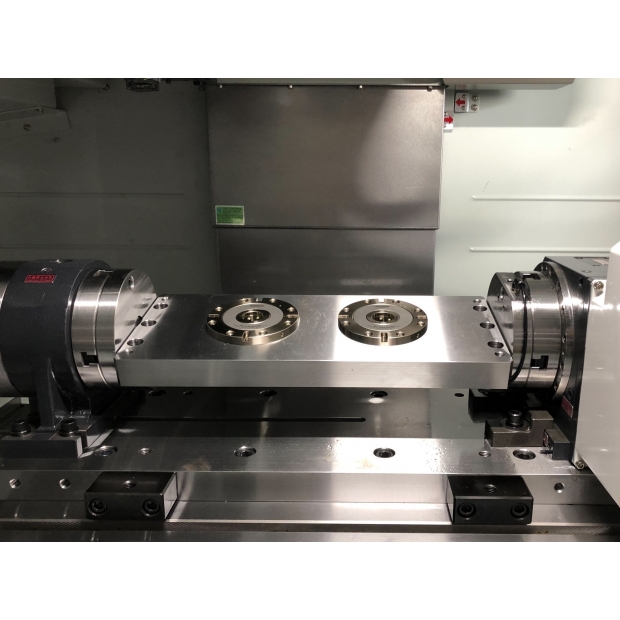

四軸中板
1 / 1
DETAIL

Product Introduction


原點定位,零點定位,夾持
原點定位,零點定位,夾持

Switching OPs by using the fixture plate.

Machining of vertical pipe or 5-way tube.



Models
P-1252200 (W500XL200XD40mm)
P-1252400 (W700XL200XD45mm)
P-1252401 (W800XL200XD45mm)

Specifications
P-1252200 Center Spacing: 180mm
P-1252400/P-1252401  Center Spacing: 150mm
Zero Point System
P-1252200:  2 sets
P-1252400/P-1252401： 4 sets
Repeatability： 0.005mm
Clamping Force：10kN
Fixing Screws Spacing：55mm X 2 (may be customized)
Screw Spec：M12 (maby be customized)
Pipe ø：：4mm
Standard Plate Size：
P-1252200: W500XL200XD40mm
P-1252400: W700XL200XD45mm
P-1252401: W800XL200XD45mm

Functions
Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle

Standard Accessories
Special Pull Studs X 4 (2 for P-1252200)
M12 Screws X 6
One-touch Fittings ø4 X 1

Optional Accessories
Operation Valve Piping Kit
Standard-sized Aluminum Fixture Plate (L280xW185xD20mm)
Fool-proof Pin
Chip Prevention Cover
Precision Positioning Pin
On-site installation

Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
