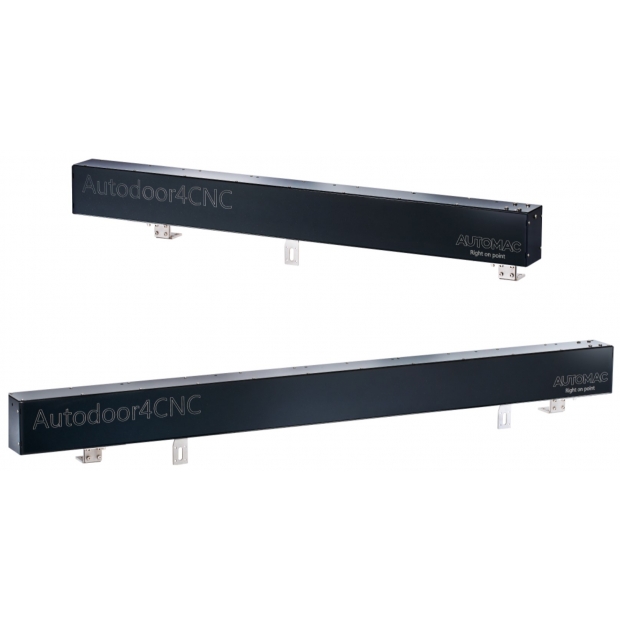

Model

AD-4768(For VMC Y-axis stoke >400mm)
AD-6068(For VMC Y-axis stoke 600~400mm)
AD-6680(For VMC Y-axis stoke <600mm)

Specifications
Door Opening Width：
470mm(AD-4768)
600mm(AD-6068)
660mm(AD-6680)
Door Opening Height：
680mm(AD-4768)(AD-6068)
800mm(AD-6680)

Open/Close Speed：Max.0.5M/s
Sensor Type：Proximity Switch(Optional)
Solenoid Valve：Neutral Position Emg Stop (Optional)
Min. Pneumatic Pressure：0.4Mpa
Pipe Dia.：8mm

Standard Accessories
ø8 Quick-connect Couplers X 2
ø8 Pneumatic Pipe X 3 meters

Optional Accessories
Solenoid Valve Pipe Kit
Proximity Switches
On-site Installaton

Features
Easy installation
Slick Exterior
Maintenance-Free
Auto Chips Scraping
0.5 Mpa pneumatic pressure meeting international eco standards
