Models

P-1251200 (L500XW200XD40mm)
P-1251400 (L700XW200XD45mm)
P-1251401 (L800XW200XD45mm)

Specifications
P-1251200 Center Spacing 180mm
P-1251400/P-1251401  Center Spacing 150mm
Zero Point System
2 sets ( P-1251200)
4 sets (P-1251400/P-1251401)
Repeatability：0.005mm
Clamping Force：10kN
Fixing Screws Spacing：55mm X 2 (may be customized)
Screw Spec：M12 (may be customized)
Pipe ø：4mm

Standard Plate Sized：
P-1251200: L500XW200XD40mm
P-1251400: L700XW200XD45mm
P-1251401: L800XW200XD45mm

Functions
Zero Point Positioning
Rapid Clamping
May be used at any angle

Standard Accessories
Speical Special Pull Studs X 4 (2 for P-1251200)
M12 Screws X 6
One-touch Fittings ø4 X 1

Optional accessories
Operation Valve Piping Kit
Standard-sized Aluminum Fixture Plate (L280xW185xD20mm)
Fool-proof Pin
Chip Prevention Cover

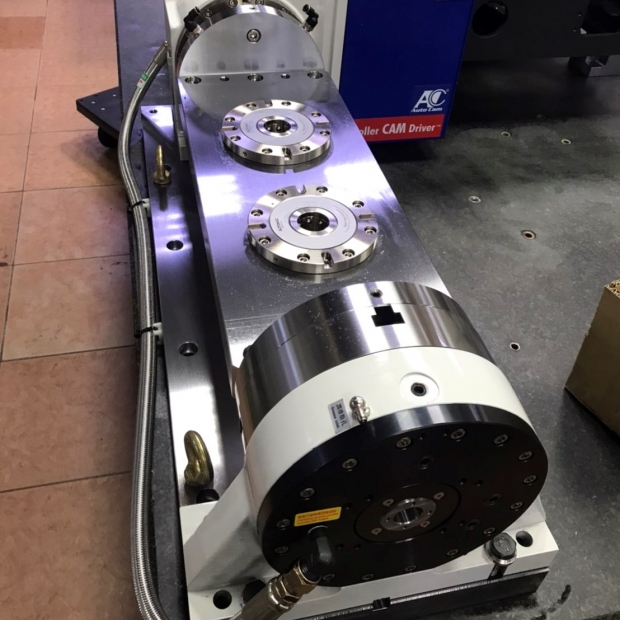

On-site installation

Features
Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
