Model

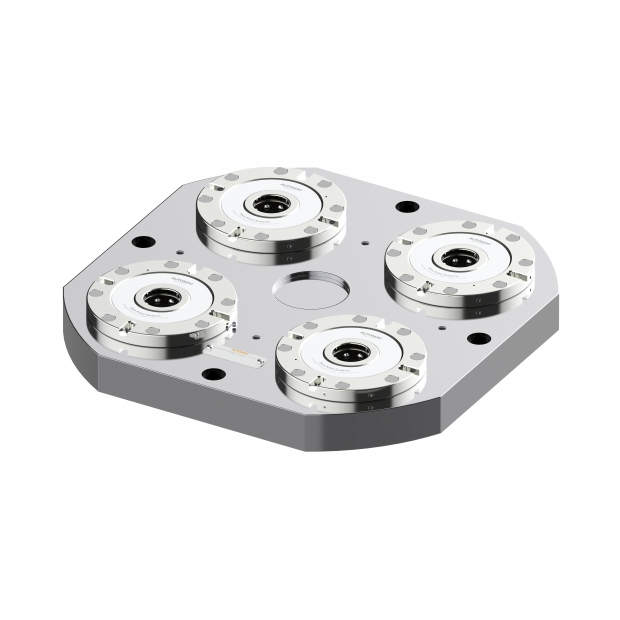

R-1252400

Specifications

Center Spacing: 180mm
Repeatability：0.005mm
Clamping Force：10kN
Screw Spec：M10  (may be used for T slots between 12-18mm)
Pneumatic outlets：ø4.1mm X 3  (PCD customized)
Standard Plate Size：ø410X47mm

Functions

Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls with Air Curtain for Chip Prevention
May be used at any angle

Standard Accessories

Special Pull Studs X 4
M10 Screws X 4
ø4.1mm Pneumatic Fixtures Interface with rotary joint units.

Optional Accessories
Operation Valve Piping Kit
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Steel Fixture Plate (ø410X25mm)
Chip Prevention Cover
Precision Positioning Pin
On-site installation

Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
