3-Axis Machining

3-Axis Advanced Type

3-Axis Advanced Type

May be used individually for different applications.
Countless variations with the combination of various fixtures.
DETAIL

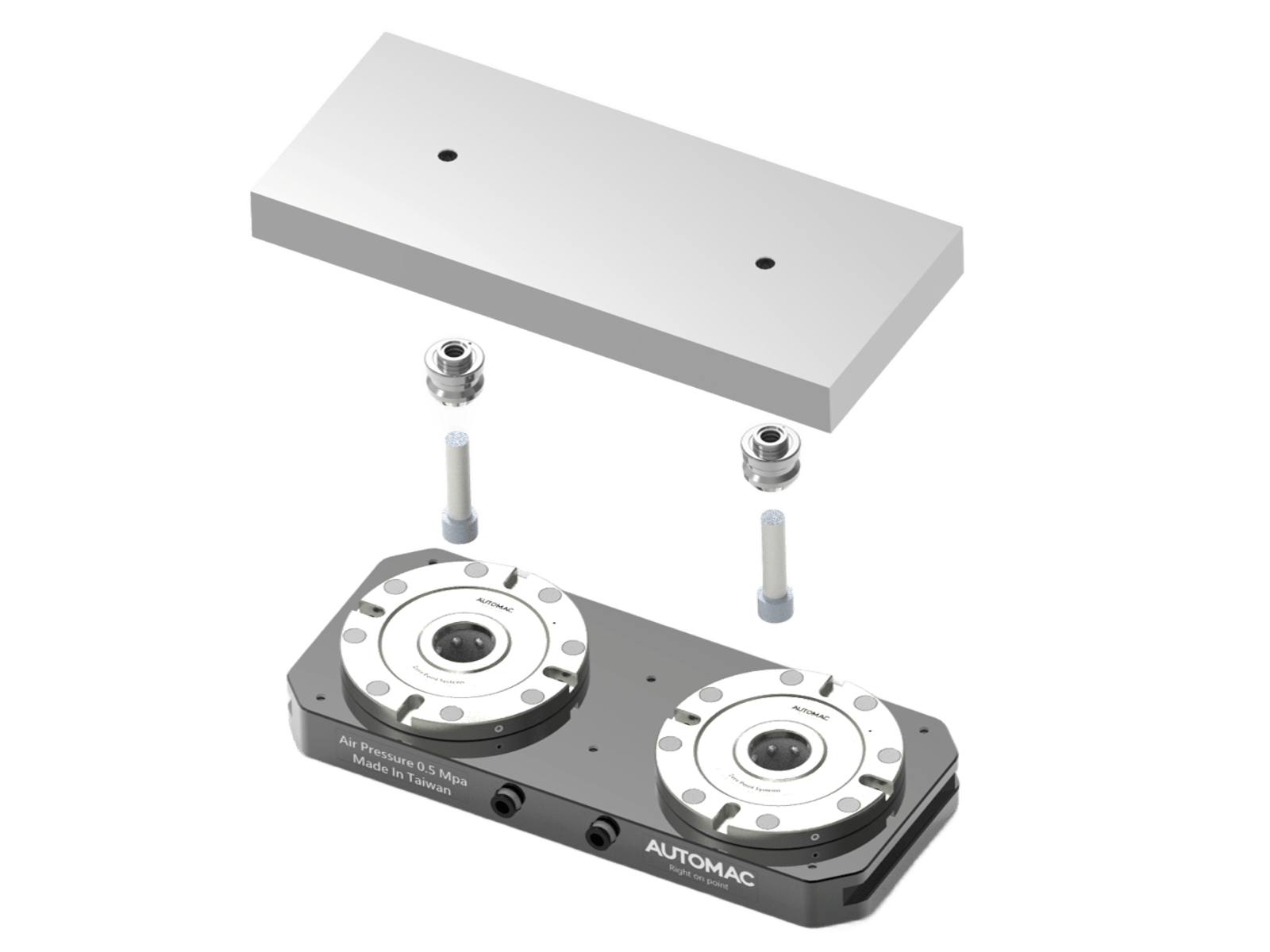

Product Introduction



原點定位,零點定位,夾持


Small-sized Work Pieces


Models

B-1052200
B-1252200

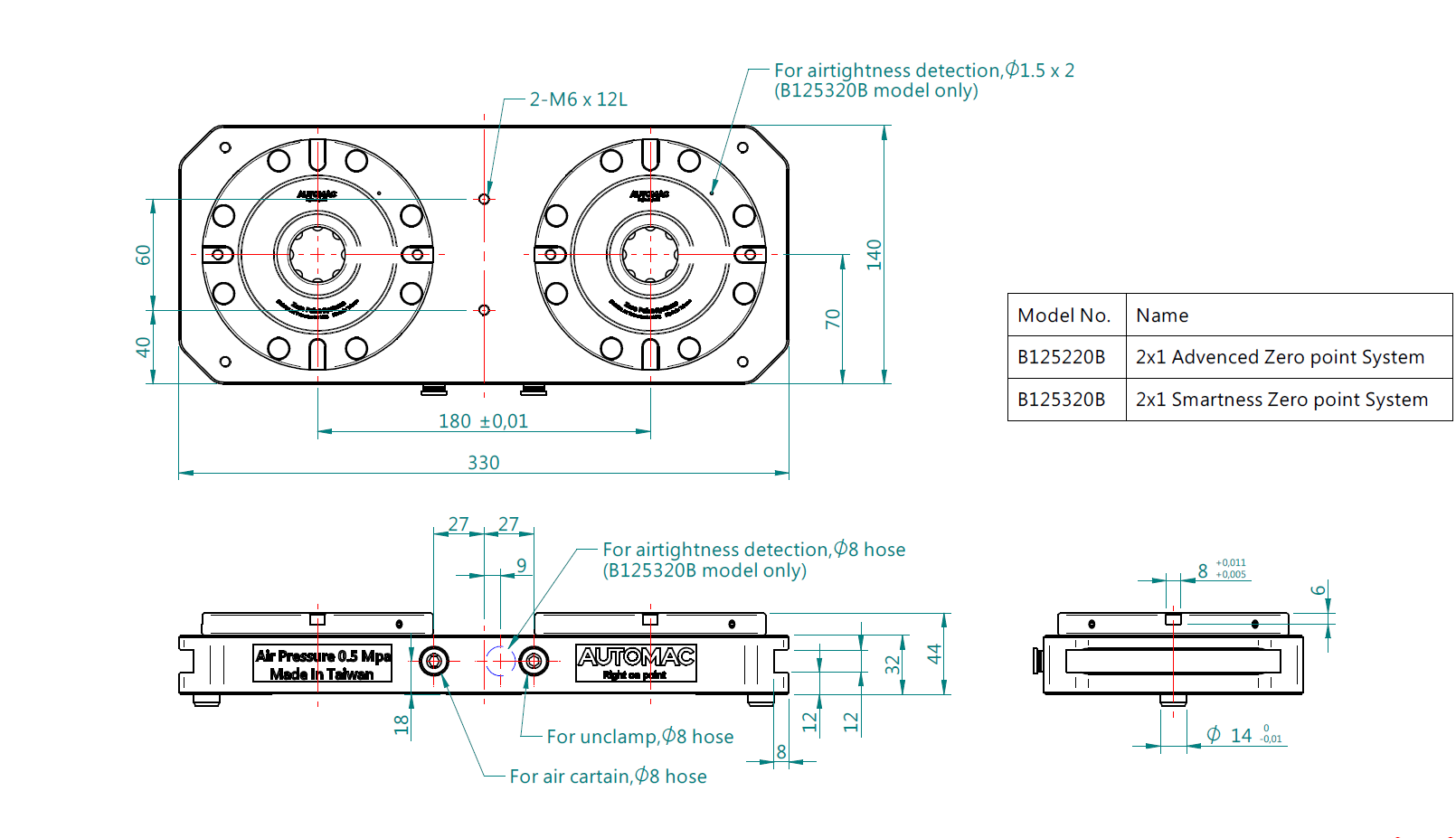

Specifications

B-1052200 Spacing 150mm
B-1252200 Spacing 180mm

Zero Point System 2 sets
Repeatability:0.005mm
Clamping Force:10kN
T Slots Distance:100mm (Customized available)
Screw Spec:M12 (Suits 14-18mm T Slots)
Pipe ø:8mm

Functions

Zero Point Positioning
Rapid Clamping
Precision Cross Keyways
Steel Balls for Chip Prevention
Applicable in both Vertical/Horizontal Machining


Standard Accessories

Special Pull Studs X 2
M12 Screws X 4

One-touch Fittings ø8 X 2


Optional Accessories
Operation Valve Piping Set
T-slot Nuts (for 14-18mm T Slot)
Standard-sized Aluminum Fixture Plate (L360xW160xD20mm)
Fool-proof Pin
Chip Prevention Cover
Precision Positioning Key

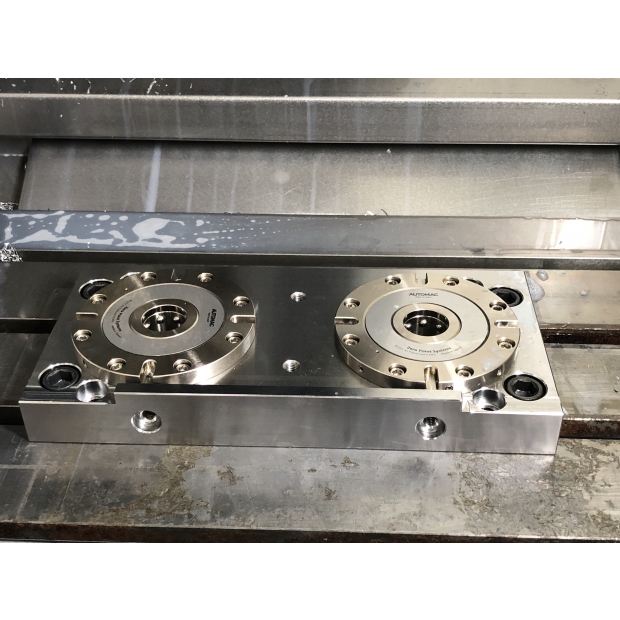

On-site installation



Features

Fast Installation
Fool-proof Design
Slick Exterior
Strengthened Clamping Force
Easy loading/unloading
Strict Safety Considerations
0.5 Mpa pneumatic pressure meeting international eco standards
